Heathkit Audio Generator Model IG-72 Vintage, Works! - $123 (Federal Way)

‹ image 1 of 10 ›

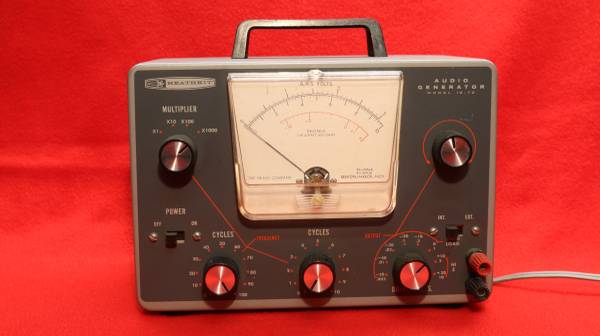

Heathkit Audio Generator Model IG-72 Vintage, Works! 1
Heathkit Audio Generator Model IG-72 Vintage, Works! 1 thumbnailHeathkit Audio Generator Model IG-72 Vintage, Works! 2 thumbnailHeathkit Audio Generator Model IG-72 Vintage, Works! 3 thumbnailHeathkit Audio Generator Model IG-72 Vintage, Works! 4 thumbnailHeathkit Audio Generator Model IG-72 Vintage, Works! 5 thumbnailHeathkit Audio Generator Model IG-72 Vintage, Works! 6 thumbnailHeathkit Audio Generator Model IG-72 Vintage, Works! 7 thumbnailHeathkit Audio Generator Model IG-72 Vintage, Works! 8 thumbnailHeathkit Audio Generator Model IG-72 Vintage, Works! 9 thumbnailHeathkit Audio Generator Model IG-72 Vintage, Works! 10 thumbnail
condition: good
make / manufacturer: Heathkit
model name / number: IG-72

QR Code Link to This Post

For Sale is a working Heathkit model IG-72 Audio Generator. It is a basic sine wave signal generator that will produce sine wave signal from approximately 1Hz to about 110KHz. This unit works. First o'scope image is about 100KHz, Second O'scope image is about 10Hz. I believe the frequency calibration is suspect, see the last O'scope photo for example. It is of a 1KHz setting but appears a little low - longer time per cycle. Vintage Tube Gear. If interested, please contact me. Email works best. Make offer.
