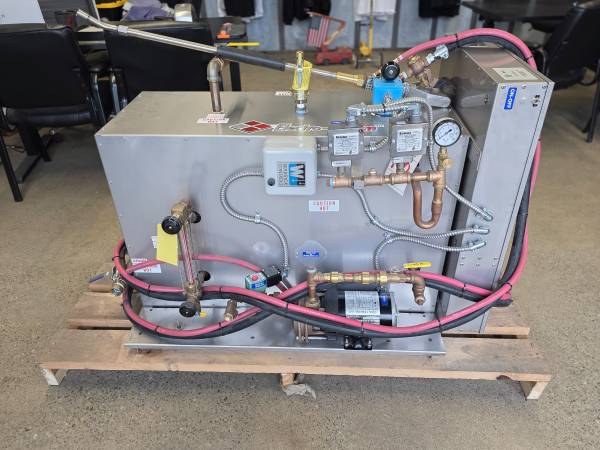

NEW ELECTRO-STEAM LB-050 GENERATOR FOR CLEANING & PHOSPHATIZING - $3,500 (PORT ORCHARD)
6791 BETHEL RD SE near ELLIS
condition:
new
make / manufacturer:
ELECTRO-STEAM
model name / number:
LB-050
size / dimensions:
168" deep x 92"wide x 77" tall
QR Code Link to This Post
Hot Dry Steam with very little water on floor during rinse.
This is a great machine to get your job done right the 1st time.
Rusty Rides Auto Sales
6791 Bethel Rd SE, Port Orchard, WA
360-895-6033
www.rustyridesauto.com
Open Monday - Friday 8:00 AM to 5:00 PM, Saturday - Sunday by appointment only
Specifications
Brands - Electro-Steam™
Variant - Low Pressure
Electrical Power - 50 kW
Power Supply Voltage1-
208 VAC
230 VAC
380 VAC
415 VAC
440 VAC
480 VAC
600 VAC
Phase- 3
Frequency-
50 Hz
60 Hz
Boiler Horse Power -5.00 bhp
Steam Capacity2-
172.50 lb/hr
78.24 kg/hr
Water Consumption-
20.67 gal/hr
78.24 L/hr
Gross British Thermal Units (BTU) Output -167377 Btu/hr
Maximum Boiler Pressure - 15 psi
Operating Pressure -0 to 11 psi
Note for Operating Pressure - Factory Set at 11 psi
Maximum Boiler Capacity - 15 gal
Boiler Fill Capacity - 11 gal
Boiler Material 3 - Carbon Steel
Cabinet Material - 304 Stainless Steel
Plumbing Material -
Brass (Schedule 40)
Carbon Steel (Schedule 40)
Industry Standards -
American Society of Mechanical Engineers (ASME) - Boiler and Pressure Vessel Code
American Society of Mechanical Engineers (ASME) - CSD-1
Canadian Underwriters Laboratories (cUL)
Underwriters Laboratories (UL)
Amperage-
Amperage at 208 Volt (V) Alternating Current (AC) Voltage (3Ø Phase) 138.80 A
Amperage at 240 Volt (V) Alternating Current (AC) Voltage (3Ø Phase) 131.00 A
Amperage at 380 Volt (V) Alternating Current (AC) Voltage (3Ø Phase) 76.00 A
Amperage at 415 Volt (V) Alternating Current (AC) Voltage (3Ø Phase) 69.60 A
Amperage at 440 Volt (V) Alternating Current (AC) Voltage (3Ø Phase) 65.60 A
Amperage at 480 Volt (V) Alternating Current (AC) Voltage (3Ø Phase) 60.10 A
Amperage at 600 Volt (V) Alternating Current (AC) Voltage (3Ø Phase) 48.10 A
Dimensions-
Length (No Options Included)- 52 in
Length (Motorized Automatic Flush and Drain (MAFD) Option Included) - 55 in
Width (No Options Included) - 26 in
Width (Motorized Automatic Flush and Drain (MAFD) Option Included) - 29 in
Height - 36 in
Minimum Clearance-
Total Height - 45 in
Total Length - 96 in
Total Width - 58 in
Plumbing Connection Sizes-
Water Inlet - 1/2" NPT (National Pipe Thread) (Female) - Y-Strainer, Brass
Steam Outlet - 3/4" NPT (National Pipe Thread) (Female) - Ball Valve, Brass
Safety Valve - 1" NPT (National Pipe Thread) (Female) - Safety Valve, Brass
Drain - 1" National Pipe Thread (NPT) (Female) - Ball Valve, Brass
Additional Drain (Motorized Automatic Flush and Drain (MAFD) Option Included)
1" NPT (National Pipe Thread) (Female) - Motorized Valve, Brass
The link below is how it works
https://youtu.be/I2M14J66kbg
